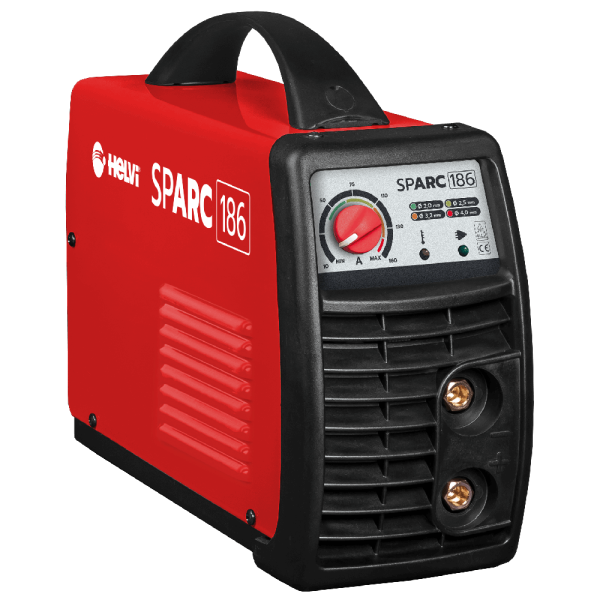

HELVI, Inverter Sparc Welding Machine 186 220V
793.99
DESCRIPTION
Easy-to-use welding inverter: optimum welding performance with all types of commercial electrodes (rutile, basic, stainless steel). They fit overvoltage, over temperature and anti-sticking control. As they are compact and lightweight, they are ideal for home/hobby applications.
TECHNICAL DATA
Input voltage (1ph) 230V - 50/60Hz
A 60% 18 A
Power 60% 2,5 KW
No load output voltage 70 V
Amp. Min-Max (H.S.) 10 ÷ 160 A
Duty Cycle 40° 160A @ 25%
100A @ 60%
80A @ 100%
? E 1,6 ÷ 4,0 mm
Electrode type 6013 - 7018
Insulation H
Protec. degree IP22S
Machine (LxWxH) 285x120x255 mm
Carton box (LxWxH) 380x245x240 mm
Weight box/net 5,9 / 6,2 Kg
SKU : HELVI-186
Manufacturer Number :
HELVI-186
DESCRIPTION
Easy-to-use welding inverter: optimum welding performance with all types of commercial electrodes (rutile, basic, stainless steel). They fit overvoltage, over temperature and anti-sticking control. As they are compact and lightweight, they are ideal for home/hobby applications.
TECHNICAL DATA
Input voltage (1ph) 230V - 50/60Hz
A 60% 18 A
Power 60% 2,5 KW
No load output voltage 70 V
Amp. Min-Max (H.S.) 10 ÷ 160 A
Duty Cycle 40° 160A @ 25%
100A @ 60%
80A @ 100%
? E 1,6 ÷ 4,0 mm
Electrode type 6013 - 7018
Insulation H
Protec. degree IP22S
Machine (LxWxH) 285x120x255 mm
Carton box (LxWxH) 380x245x240 mm
Weight box/net 5,9 / 6,2 Kg
