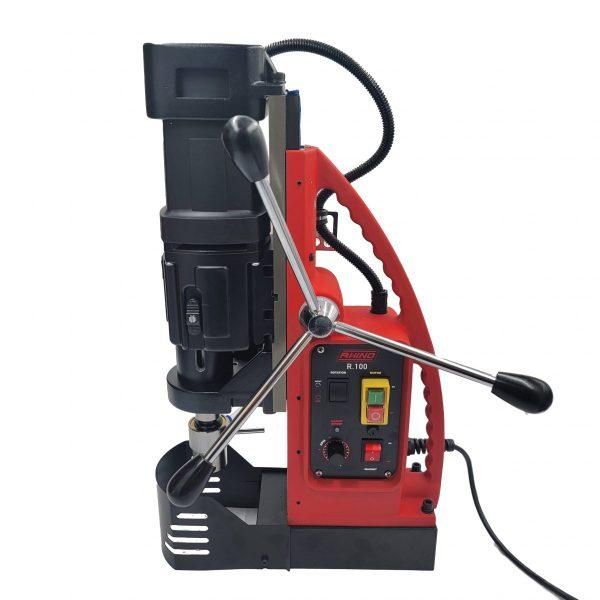

RHINO, Magnetic Drilling Machine Up To 100MM 220V

The RHINO R.100 magnetic core drilling machine cuts holes up to 100 mm and is particularly suitable for tapping. This magnetic core drilling machine has an extremely powerful 1800 W motor with a four-speed gearbox. The R.100 drilling machine benefits from a right/left rotating functionality and electronic speed adjustment. ANNULAR CUTTERS Ø 12 – 100 mm Ø 1/2? – 13 15/16? TWIST DRILLS Ø 1 – 31.75 mm Ø 1/16? – 1 1/4? THREADING M3 – M30 1/8? – 1 3/16? COUNTERSINKING Ø 10 – 105 mm Ø 3/8? – 4 1/8? LENGTH 340 mm 13 3/8? WIDTH 310 mm 12 3/16? HEIGHT 510 – 710 mm 20 1/16? – 27 15/16? STROKE 260 mm 10 1/4? WEIGHT 28 kg 61.7 lbs MAGNET (L x W x H) 220 x 110 x 64 m 8 11/16? x 4 5/16? x 2 1/2? MAGNETIC FORCE 2,500 kg 5,512 lbs MOTOR POWER 1,800 W 16.4 A TOTAL POWER 1,950 W 17.7 A SPEED (no load) (I) 40 – 110 rpm – (II) 65 – 180 rpm – (III) 140 – 380 rpm – (IV) 220 – 610 rpm SPEED 1,800 W (loaded) (I) 85 rpm – (II) 152 rpm – (III) 270 rpm – (IV) 480 rpm SPINDLE WELDON MT3 19.05 mm MT3 3/4? POWER SOURCE 220 – 240V AC / 50 – 60 Hz Additional information Weight 28 kg UoM PCS MADE IN CHINA Wattage 1800 W Length (MM) 340 Width (MM) 310 Height (MM) 510 – 710 Power Input 220-240V 50-60Hz
